This guide explains how payment hubs work and how banks and financial institutions, enterprise finance teams, and payment service providers can evaluate them. It covers payment scope, real-time processing, integrations, routing, architecture, scalability, reconciliation, security, compliance, implementation, and total cost. The right platform depends not only on transaction volume but also on the organization's operating model, existing infrastructure, geographic footprint, regulatory responsibilities, and required level of control.

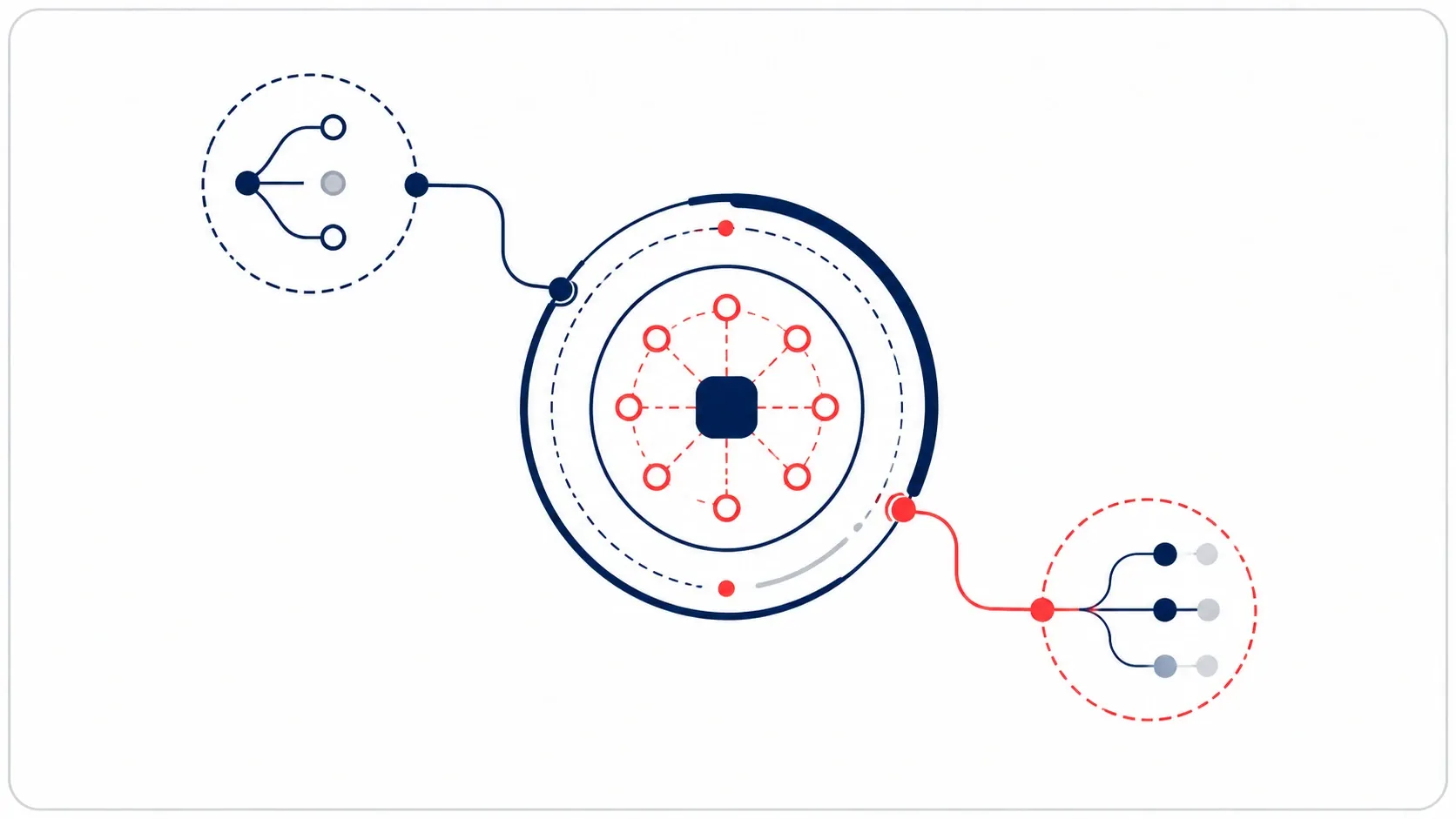

What Is a Payment Hub?
A payment hub provides a central control and connectivity layer between systems that create payment instructions and the external infrastructure that processes them. Depending on the organization, those systems can include core banking platforms, merchant applications, ERP systems, treasury-management systems, billing platforms, mobile applications, and accounting software.
On the external side, a hub can connect to banks, card gateways, acquirers, payment schemes, clearing systems, wallets, instant-payment networks, and other payment service providers.
Instead of maintaining separate integrations and operational processes for every payment method or provider, organizations can use the hub to standardize transactions into a common internal data model. Rules can then determine validation, authorization, routing, retry behavior, approvals, exception handling, and reconciliation.
The platform may support collections, payouts, transfers, direct debits, refunds, and associated financial data. Some payment hubs perform processing functions directly; others primarily orchestrate services supplied by banks, acquirers, or regulated payment providers.
The term therefore does not imply that the hub itself holds customer funds, acts as the merchant acquirer, performs clearing, or provides final settlement. These responsibilities must be established separately for every implementation.
How Does a Payment Hub Differ from a Payment Gateway?
A payment gateway is primarily designed to capture payment information and transmit transaction requests between a merchant environment and payment-processing infrastructure. It is commonly associated with card acceptance, although gateway capabilities vary.
A payment hub has a broader operational scope. It can connect multiple gateways, banks, acquirers, rails, and internal systems while managing routing, workflow rules, status information, exceptions, reconciliation, and reporting.
For example, an enterprise might use several gateways for card acceptance but use one payment hub to determine which gateway receives each transaction, consolidate settlement information, reconcile the resulting payments, and feed standardized data into its accounting environment.
Is a Payment Hub the Same as Payment Orchestration?
Not necessarily. Payment orchestration is generally one functional layer within a broader payment-hub architecture.
Orchestration determines how transactions move between available providers. Rules may consider geography, currency, payment method, cost, availability, risk, or historical provider performance. Smart retries and automatic failover can also form part of the orchestration layer.
A broader payment hub can additionally manage payment initiation, collections, payouts, provider connectivity, settlement status, reconciliation, exception processing, audit trails, and operational reporting. Organizations should therefore compare specific capabilities rather than assuming that the terms "payment hub" and "payment orchestration platform" represent identical products.
How a Payment Hub Works
A typical payment hub sits between transaction-originating applications and downstream payment infrastructure. The precise sequence varies by payment type, but the lifecycle usually includes:
1. A payment instruction enters through a banking channel, merchant application, ERP system, API, message queue, batch file, or another connected system.
2. The hub validates required fields, converts incoming information to a canonical format, enriches data where necessary, and checks for duplicate instructions.
3. Applicable approval, fraud, compliance, and authorization controls are applied.
4. Routing rules determine the appropriate bank, acquirer, processor, gateway, or payment rail.
5. The transaction is submitted for authorization, processing, clearing, or settlement.
6. Provider status messages and confirmations are standardized and returned to connected systems.
7. Payments, refunds, fees, chargebacks, and settlement records are matched and reconciled.
8. Operational dashboards and financial reports are updated.
Typical platform components include a connectivity layer, canonical payment-data model, workflow and rules engine, provider connectors, transaction store, reconciliation engine, exception-management capabilities, and monitoring tools.
ISO 20022 is particularly relevant to bank and payment-market-infrastructure integrations because it provides standardized financial message definitions across areas including payment initiation and payments clearing and settlement. Its structured data model can support greater automation and richer transaction information.
The payment hub's transaction database should not automatically be treated as the authoritative financial ledger. General-ledger balances, customer-account balances, merchant balances, or settlement records may remain authoritative in core banking, ERP, accounting, or dedicated ledger systems. Similarly, banks, acquirers, schemes, and clearing systems continue to perform the external functions assigned to them.
Payment Hub Use Cases by Organization Type
When Is a Centralized Payment Hub Needed?
A payment hub becomes useful when payment complexity starts generating material operational or technology overhead. Common indicators include multiple providers with duplicated integrations, inconsistent payment formats, manual reconciliation, fragmented reporting, high failure rates, limited end-to-end payment visibility, or increasing costs for entering new markets.
Centralization is not automatically beneficial. A business using one payment method, one bank, and a small number of stable payment flows may gain little from introducing another technology layer. The business case strengthens as transaction volume, provider count, geographic coverage, regulatory requirements, and integration complexity increase.
Banks and Financial Institutions
Banks can use payment hubs to consolidate fragmented payment engines and connect multiple domestic, cross-border, high-value, and instant-payment rails through a common processing layer.
A centralized model can normalize payment messages, apply common validation and workflow controls, increase straight-through processing, and provide consistent operational monitoring across different rails. ISO 20022 support is increasingly important because the standard defines structured financial messaging used across payment initiation, clearing, settlement, and reporting environments.
For institutions modernizing legacy infrastructure, the hub can also provide an abstraction layer that separates customer channels and internal applications from individual payment engines, allowing migration by payment flow rather than requiring simultaneous replacement of every system.
Enterprise Finance Teams
Enterprise finance teams can use a payment hub to centralize incoming collections, supplier or customer payouts, refunds, settlement tracking, reconciliation, and reporting.
Integrations with ERP, treasury, accounting, billing, and order-management platforms allow payment status to move back into the systems where invoices, orders, cash positions, and accounting entries are managed.
For multinational groups, the platform can also provide a common operational model across entities, currencies, banks, and markets. The principal benefit is not simply payment execution: it is reducing manual handoffs and creating consistent visibility from the original transaction through settlement and accounting.
Payment Service Providers
Payment service providers can use a hub as orchestration infrastructure connecting merchants with multiple gateways, acquirers, banks, processors, and local payment methods.
Routing rules can select providers according to cost, currency, location, transaction attributes, availability, or observed performance. Retry and failover logic can redirect eligible transactions when a provider is unavailable or a particular route fails.
A PSP may also require multi-tenant configuration, merchant-specific routing rules, separate credentials, settlement reporting, configurable pricing, white-label capabilities, and rapid onboarding of new providers or countries.
How to Choose the Right Payment Hub
The evaluation should begin with the organization's target operating model rather than a vendor feature list. Banks, enterprises, and PSPs use payment hubs for different purposes, so the weighting of architecture, routing, settlement, reconciliation, compliance, and commercial criteria should change accordingly.
Evaluation area | Banks and financial institutions | Enterprise finance teams | Payment service providers | Evidence to request |
Payment scope | Multiple payment rails, transfers, clearing connectivity, ISO 20022 | Collections, payouts, refunds, direct debits and virtual accounts | Cards, alternative payment methods, acquiring and merchant services | Supported-flow matrix distinguishing native, partner and custom capabilities |
Integration | Core banking, fraud, compliance and settlement systems | ERP, treasury, accounting, billing and order-management systems | Merchant APIs, gateways, acquirers, banks and payment methods | API documentation, connector catalogue, sandbox and implementation estimates |
Routing and orchestration | Rail selection, scheme availability and operational controls | Routing by cost, currency, market and provider availability | Smart routing, retries, cascading, failover and authorization optimization | Rules-engine demonstration and historical routing-performance reports |
Real-time processing | 24/7 instant-payment access, liquidity controls and immediate status updates | Real-time collection visibility and automated posting | Low-latency authorization, provider monitoring and automatic failover | Latency results, peak-capacity tests and real-time scheme certifications |
Reconciliation and reporting | Transaction, clearing and settlement reconciliation | Invoice matching, cash visibility, fee allocation and accounting exports | Merchant settlement, chargeback, fee and provider reconciliation | Sample reports, matching rules, exception workflows and audit trails |
Architecture and scalability | Resilient deployment, data residency and legacy modernization support | Multi-entity, multicurrency and geographic scalability | Multi-tenant isolation, merchant configuration and high transaction capacity | Architecture diagrams, uptime history, recovery objectives and load-test results |
Security and compliance | Regulatory controls, sanctions screening, auditability and scheme compliance | Access controls, privacy, approval workflows and PCI DSS scope | Tokenization, merchant segregation, fraud controls and licensing coverage | Certifications, licenses, security assessments and responsibility matrix |
Commercial fit | Modernization cost, infrastructure ownership and long-term support | Integration savings, automation benefits and reconciliation efficiency | Transaction economics, connector costs and speed of market expansion | Total-cost model covering implementation, usage, support and exit costs |
Define the Payment Scope and Operating Model
Document exactly what the payment hub must handle. Scope may include collections, payouts, account-to-account transfers, recurring payments, direct debits, card transactions, refunds, or combinations of these flows.
Then map the required instruments and channels: cards, bank transfers, instant payments, wallets, virtual accounts, local payment methods, and any industry-specific rails.
Coverage must also be evaluated by currency, country, legal entity, customer segment, and tenant. A platform described as globally capable may still depend on different banking or acquiring partners in individual markets.
Most importantly, establish the vendor's role. Determine whether it processes transactions itself, routes instructions to third parties, provides regulated payment services, holds funds, or supplies only technical infrastructure. Identify every capability as native, partner-delivered, custom-built, or planned.
Can a Payment Hub Support Real-Time Payments?
Yes, provided that both the platform and its external connectivity support the required instant-payment scheme. Real-time capability is not established merely because the hub processes internal API calls quickly.
CPMI describes fast payment services as making funds immediately available to the payee and supporting round-the-clock availability.
Evaluate whether the complete processing chain operates 24/7: connectivity, validation, fraud controls, sanctions or other compliance checks, routing, downstream scheme access, status updates, reconciliation, alerting, and operational support.
Banks should also examine liquidity and scheme-specific operational requirements. Enterprises and PSPs should test timeout handling, duplicate protection, pending transactions, unavailable providers, immediate callbacks, and recovery where downstream status is uncertain.
Assess Integration and Interoperability
A payment hub derives much of its value from replacing point-to-point integration complexity. Review REST or other APIs, webhooks, SDKs, message queues, secure file exchange, batch connectivity, and prebuilt provider connectors.
Test compatibility with the organization's actual core banking, ERP, treasury, accounting, billing, fraud, identity, and compliance systems rather than comparing only vendor logos.
Where ISO 20022 is required, identify the actual message families, versions, market-practice rules, and mappings the platform supports. ISO 20022 provides message definitions across payment business areas, while networks and payment infrastructures can impose their own implementation guidelines.
Technical due diligence should also cover authentication, authorization, idempotency, API versioning, rate limits, asynchronous processing, webhook delivery, error models, data export, sandbox quality, and deployment effort.
Evaluate Routing and Orchestration
Routing determines how the hub selects between available payment providers or rails.
Basic routing may use payment type, geography, currency, transaction value, or merchant configuration. More sophisticated rules can incorporate processing costs, provider availability, historical authorization performance, risk signals, transaction characteristics, and commercial commitments.
Evaluate smart retry rules, cascading between providers, automatic failover, health checks, circuit breakers, and safeguards against repeatedly submitting a transaction that may already have succeeded.
Authorized operational users should be able to change routine routing rules through controlled configuration without software releases. Changes should be versioned, approved where necessary, and auditable.
The reporting layer should show authorization or payment-success rates, route distribution, latency, retries, provider availability, and processing cost so that routing decisions can be evaluated quantitatively.
Choose the Architecture and Deployment Model
Compare cloud-hosted, on-premises, hybrid, and vendor-managed deployments against security, regulatory, performance, and operational requirements.
Banks may require tighter infrastructure control or integration with private networks and legacy systems. Enterprises may prefer managed cloud services to reduce operational overhead. PSPs often need elastic infrastructure and strong tenant isolation.
Assess whether the system is single-tenant or multi-tenant and how customers, merchants, legal entities, credentials, cryptographic material, and transaction data are isolated.
Also compare commercial platforms with composable architectures or internally developed hubs. Commercial software can reduce initial development requirements, while a composable design may provide greater control over providers and workflows. Custom development offers maximum flexibility but transfers lifecycle ownership, security maintenance, connector development, and operational support to the organization.
Verify Scalability, Performance, and Resilience
Ask vendors for measurable performance characteristics rather than generic claims of "enterprise scalability."
Define sustained transaction throughput, expected peaks, latency requirements, batch-processing windows, data-retention volumes, and concurrency. Test representative workloads, including seasonal peaks and provider degradation.
Scalability should also include organizational growth: additional countries, legal entities, merchants, payment methods, currencies, providers, and schemes should not require disproportionate redevelopment.
Review availability commitments, redundancy across infrastructure zones or sites, backup design, disaster recovery, recovery time objectives, recovery point objectives, and operational business-continuity processes.
For critical payment systems, request historical service-level reporting, documented load tests, and evidence of failover exercises.
Review Payment Operations, Reconciliation, and Reporting
Operational functionality should reflect the intended payment model. Relevant capabilities may include recurring collections, direct debits, payment links, virtual accounts, payouts, reversals, refunds, disputes, and chargeback workflows.
Reconciliation should match more than transaction IDs. A mature implementation can compare original payment instructions, authorization or execution results, bank or acquirer settlement records, refunds, chargebacks, fees, invoices, and accounting entries.
Review configurable matching tolerances, one-to-many and many-to-one matching, exception queues, manual investigation, assignment, ageing, comments, and audit histories.
Finance teams should test dashboards for cash position, successful and failed payments, outstanding settlements, fees, exceptions, and reconciliation rates. Reporting should provide controlled exports or APIs for accounting, treasury, regulatory, and business-intelligence environments.
Examine Security, Risk, and Regulatory Compliance
Security evaluation should cover encryption, tokenization where applicable, role-based access, multi-factor authentication, privileged-user controls, dual approval, audit logging, key management, network security, vulnerability management, backup protection, and incident response.
For platforms that store, process, or transmit payment-card account data, determine the organization's PCI DSS scope and the responsibilities of every participating service provider. PCI DSS provides technical and operational requirements for protecting payment account data; using a third-party payment platform does not by itself eliminate the need to establish applicability and responsibilities.
Review privacy and data-residency obligations market by market. For regulated entities, confirm relevant licensing, scheme approvals, sanctions-screening arrangements, transaction-monitoring responsibilities, record retention, and regulatory reporting.
Create a formal responsibility matrix identifying who makes fraud decisions, performs compliance checks, holds funds, protects credentials, investigates incidents, handles disputes, and reports regulatory events.
Evaluate Vendor and Commercial Fit
The technology assessment should be accompanied by vendor due diligence. Review comparable implementations, customer references, geographic coverage, ownership and financial stability, product roadmap, implementation resources, and dependency on subcontractors.
Evaluate operational support in the time zones where payments are processed. Obtain escalation paths, incident severities, response and resolution targets, maintenance arrangements, and service credits.
Pricing may contain licence fees, transaction charges, payment-method charges, provider connectors, implementation services, cloud infrastructure, premium support, maintenance, customization, and data-volume charges.
Model costs under realistic transaction growth rather than the first-year volume alone. Contracts should also address liability allocation, service-level remedies, intellectual-property rights, subcontractors, data ownership, termination support, data extraction, and the ability to replace individual providers without replacing the entire hub.
What ROI Can a Payment Hub Deliver?
Begin with baseline metrics instead of attempting to justify the platform using broad automation claims.
Measure current integration development and maintenance costs, transaction fees, payment-failure rates, authorization performance where relevant, reconciliation labour, manual exception volumes, provider outages, settlement-investigation effort, and time required to launch new payment methods or markets.
Potential benefits include fewer duplicated integrations, lower operational workload, routing savings, reduced reconciliation effort, improved payment-success rates, faster visibility of settlements, and faster provider or geographic expansion.
Against these benefits, include software licences, transaction fees, implementation, migration, infrastructure, new integrations, security and compliance work, training, internal resources, and ongoing support.
Calculate the payback period using measurable savings and incremental revenue separately from qualitative benefits such as greater control, resilience, and architectural flexibility.
Payment Hub Implementation Roadmap
Confirm Scope, Ownership, and Success Metrics
Define the target payment flows, markets, legal entities, currencies, providers, transaction volumes, performance requirements, service levels, and compliance obligations before designing integrations.
Assign accountable owners for technology, payment operations, treasury, finance, security, compliance, reconciliation, and vendor management.
Establish measurable baselines such as payment-success rate, processing cost, reconciliation rate, manual exceptions, settlement accuracy, system availability, and processing latency.
Map the Current Payment Environment
Document every relevant application, provider, payment rail, interface, contract, message format, control, and operational dependency.
Trace payment data from origination through processing, settlement, reconciliation, and accounting. This usually exposes duplicated integrations, inconsistent identifiers, manual file handling, poor data quality, reconciliation gaps, and expensive routing arrangements.
The resulting architecture and dependency map should become the baseline for migration planning.
Design the Target Architecture and Governance Model
Define which system owns each important data object, including payment instructions, customer or merchant information, provider status, balances, settlement records, and accounting entries.
Document the canonical payment model, routing governance, access controls, exception ownership, configuration approval, incident escalation, and reconciliation responsibilities.
The operating model should also state which responsibilities remain with banks, acquirers, schemes, processors, and other providers.
Validate the Platform Through a Proof of Concept
Use the proof of concept to test the most important uncertainties rather than reproducing a standard vendor demonstration.
Execute representative payment flows through real or realistic integrations. Test routing changes, provider failures, duplicate instructions, delayed responses, refunds, reconciliation breaks, settlement files, and operational reports.
Where performance is important, use transaction patterns and volumes that approximate expected production conditions.
Integrate and Migrate in Phases
Avoid migrating every payment flow simultaneously unless technical or regulatory constraints make a single cutover unavoidable.
Prioritize flows according to business value, dependency complexity, operational risk, and readiness. A phased rollout allows the organization to stabilize connectors, reconciliation logic, routing rules, and operating procedures before moving higher-risk traffic.
Use parallel processing and data comparison where appropriate. Maintain documented rollback procedures and fallback routes during each migration stage.
Test End to End
Testing must extend beyond individual APIs.
Verify complete flows from payment initiation to provider response, settlement, reconciliation, accounting, and reporting. Include permissions, authentication, fraud and compliance controls, provider outages, timeouts, duplicate messages, partial failures, delayed status updates, and malformed data.
Conduct peak-load, resilience, disaster-recovery, security, user-acceptance, and operational-readiness testing before production cutover.
Monitor and Optimize
After launch, monitor platform availability, end-to-end latency, payment success, provider performance, routing costs, reconciliation rates, unresolved exceptions, settlement accuracy, and infrastructure capacity.
Use production evidence to refine routing, retry logic, provider configurations, matching rules, alert thresholds, and capacity.
Optimization should be governed. Changes to routing or payment controls can affect cost, risk, customer outcomes, and provider obligations, so material modifications should be tested and auditable.
Key Risks and How to Manage Them
A payment hub centralizes control but can also centralize operational dependency. The implementation should therefore address several risks explicitly:
- Unclear responsibility: document which organization processes each transaction, holds funds, performs compliance checks, investigates fraud, manages disputes, and owns settlement exceptions.
- Integration and data complexity: use standardized interfaces, canonical data models, reusable connectors, stable identifiers, and phased delivery.
- Vendor or provider concentration: maintain alternative routes where commercially and operationally appropriate, portable data, modular connectors, and workable exit provisions.
- Operational disruption: use controlled cutovers, parallel processing, rollback procedures, provider fallback, and tested business-continuity plans.
- Compliance gaps: involve legal, security, compliance, privacy, and risk teams during architecture and provider selection rather than immediately before launch.
- Insufficient scalability: validate realistic peak throughput, latency, data volumes, and failover behavior before production deployment.
- Incomplete reconciliation: test identifiers, settlement files, fees, refunds, chargebacks, matching rules, and exception handling from end to end.
- Weak internal adoption: establish process ownership, operational documentation, role-based training, support arrangements, and change governance.
Conclusion
Choosing a payment hub should begin with clearly defined payment flows, operating responsibilities, and measurable business outcomes rather than a generic feature comparison. Banks, enterprises, and payment service providers need different combinations of connectivity, orchestration, real-time processing, scalability, reconciliation, security, and compliance controls.
Shortlisted platforms should be evaluated against realistic transaction volumes, integrations, provider failures, settlement data, and operational exceptions. Architecture reviews, customer references, total-cost modelling, clear responsibility allocation, and a representative proof of concept provide stronger evidence than product demonstrations alone and reduce the risk of committing to unsuitable payment infrastructure.
